WZB-4 JDB CASTING BUSHING

WZB-4 JDB CASTING BUSHING
Location: China
Business Type: Manufacturer, Exporter
Certificate: ISO9001;CE;WRAS;GSG;National Torch Program Certificate
Terms of payment and delivery: 30% down payment;70% before shipment/FOB CIF
Minimum order quantity: 1 set
Price: Consultation
Packing details: Wooden pallet
Delivery time: 1-4 months
Payment method: T/T L/C
Product informationAbout Us

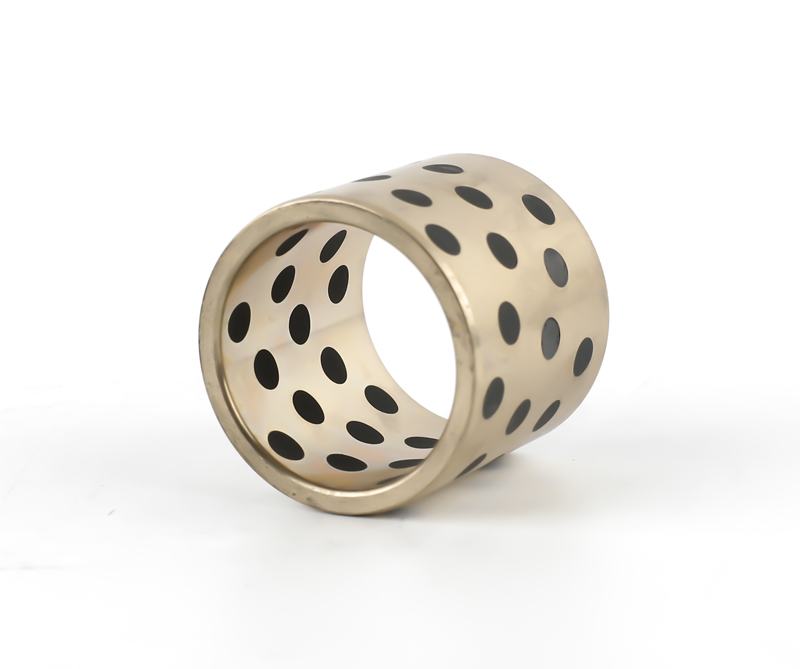

WZB-4  Graphite-impregnated bronze bearings are customer-specified products. In many cases, previously using 5-5-5 bronze which does not possess self-lubricating property, if lubrication becomes insufficient, will result in binding and failure of the bearing. WZB-4 was developed to solve this problem. By impregnating graphite in certain designed pattern into working surface of the bearing, the product can operate in dry conditions through the mechanism of solid lubrication. JDB-7 can be used in high temperature environments, such as hot steam rolling equipment, paper making machineries, etc.

Basic material

CuZn25A16Fe3Mn3

Dynanic load

120N/mm²

Base hardness

HB210~275

Friction Coef

<0.16

Temperature Max

300℃

Speed limit

dry 0.4m/s oil 5m/s



0
Views: 24

Company Profile

Jiaxing Wuzhou Bearing Technology Co., Ltd.Specializing in manufacturing WZB-4 JDB CASTING BUSHING products, the physical production enterprises have reached 150 million sets of production capacity, with one automatic sintering line. Enterprise technology relying on Research Institute and colleges and universities and colleges and universities and colleges and universities, constantly develop self-lubricating bearing products adapted to different working conditions and various mechanical fields. The product performance has reached the level of foreign products of the same kind. The sales of WZB-4 JDB CASTING BUSHING all over more than 40 countries and regions at home and abroad, and have been recognized by domestic and foreign users. In 2006, the company passed the ISO9001 quality system certification! And there is TUV system certification!

The main products are (Du) oil-free bearings, (Dx) boundary lubrication bearings, bimetal series bearings, bronze rolling bearings, self-lubricating bearings. The characteristic product is Du thin wall series!
