MINING MACHINERY WZB-2 DX BUSHING SF-2 CSB-22 factory

Product

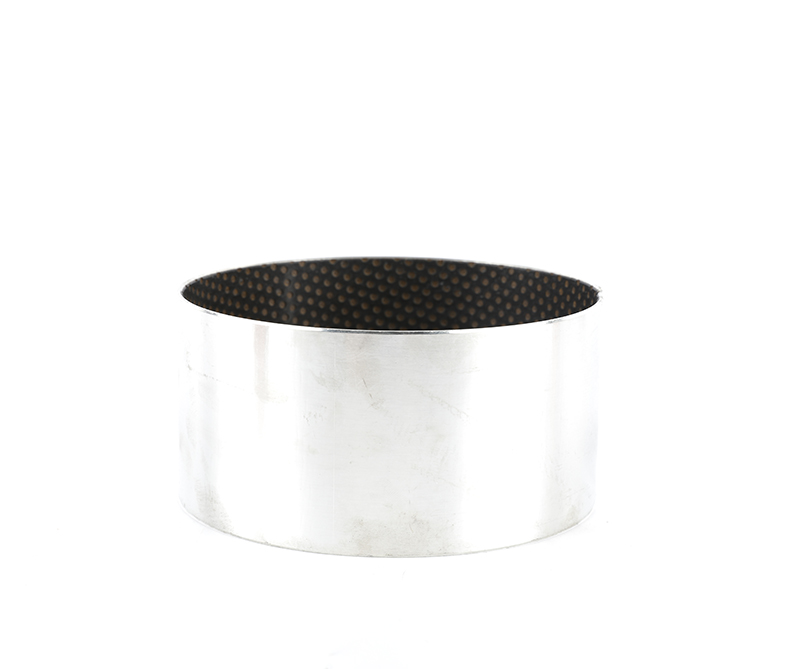

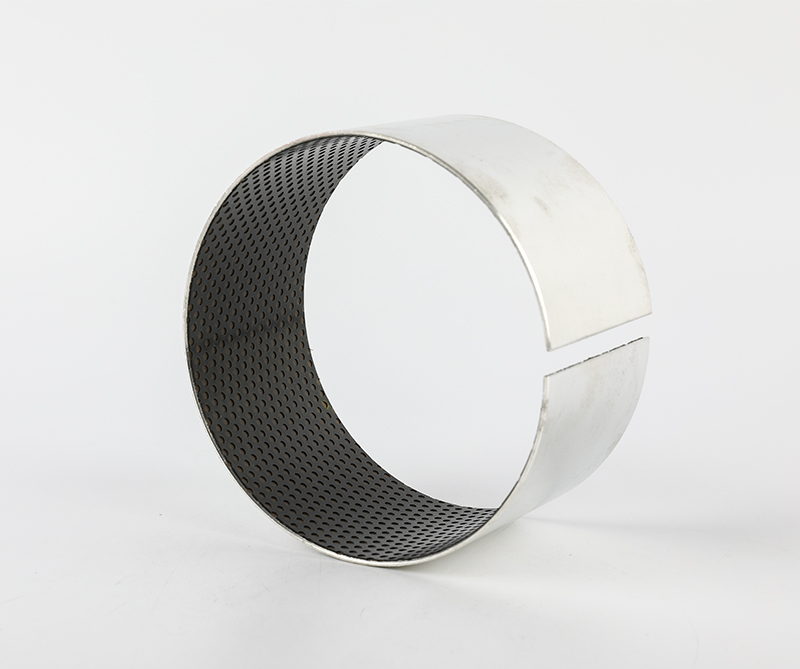

MINING MACHINERY WZB-2 DX BUSHING SF-2 CSB-22

SF-2  boundary lubrication bearing is based on a composite material with 3 firmly bonded layers:stel as backing.sintered porous bronze powder as interlayer and modified POM as lining layer.It works well under working condition of low speed, heavy duty and normal temperature.It is cost effective and it has longer working life when it act as substitute of normal copper sleeves.It is widely applied in auto chassis, forging machine,metallurgical and mining equipment,construction machinery, power station,strip rolling industries etc.

Load capacity

70N/mm²

Friction Coef

0.05~0.25

Temperature

-40℃~130℃

PV limit

2.2N/mm²·m/s

Speed limit

2.5m/s
